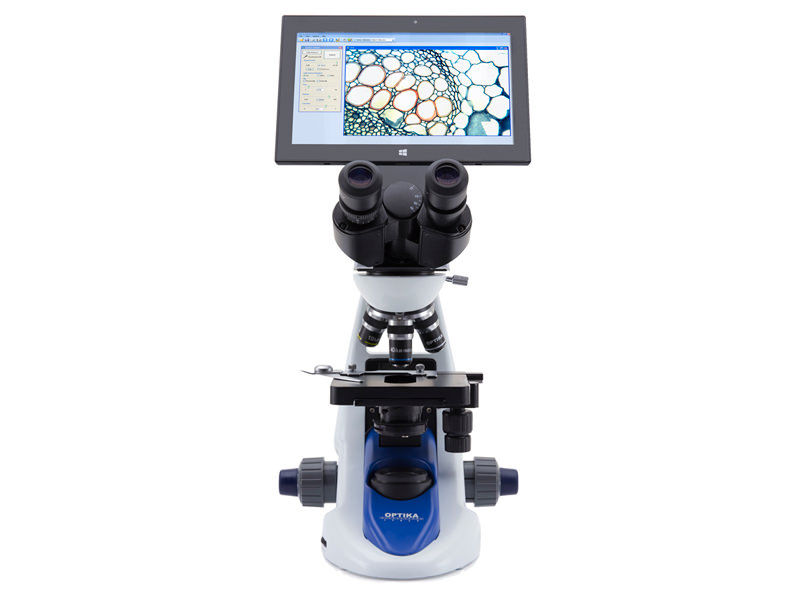

Microscope B-190TB.
Didactic and laboratory microscope for routine applications, with built-in camera and removable 8.9” full HD tablet included.
Stable and ergonomic metal stand that allows observation with transmitted light.
Tablet with OPTIKA exclusive removable stand.
Features:
Handling:
- The “tablet” can be tilted in all directions what facilitates vision during demonstrations.
- The simultaneous data and power feed make this machine ideal for long term operation.
- The “tablet” can be detached from the microscope and used as a laptop.
Optical system:
- The optical system has been developped for the most demanding users; it consists of high quality components which guarantee a high image contrast and an excellent optical resolution. The optical components have been designed and treated with special techniques to prevent the formation of moulds and fungi.
Stand:
- The stand has a modern and ergonomic design. It is easy to carry the microscope thanks to the large opening behind the revolving nosepiece, to be used as a handle. The opening allows the user to see clearly the objectives and the samples used in discussion groups.
Mechanics:
- The moving parts are made by means of a computerized numerical control system reducing manufacturing tolerance and increasing the reliability of the instrument. The strict controls on materials and production processes comply with ISO 9001:2008 quality system.
Illumination:
- X-LED² type with white LED; light intensity control using a knob on left side of the frame. LED power 3W, comparable to a 30-35W halogen bulb.
Camera:
- Digital camera resolution: 3.14 Mpx. Signal output: USB 2.0 - Sensor size: 1/2.5” Sensor technology: CMOS- Image format: 4/3 Full Image Size: 2048x1536. NO driver (microsoft driver). Capture features: continuous auto exposure, image size, image capture, compressed video capture. Control parameters: brightness, gain, exposure time, colors, color enhancement.
Technical data:
"Tablet" specifications:
| Model | 8.9” tablet |
| Operating system | Windows 8.1 32-bit, Microsoft Office 365 Personal (1 year subscription) |
| Language | Multi – language |
| CPU | Intel® Bay trail Z3735F, Quad core |
| CPU speed | 1.83 GHz |
| Graphic card | Intel® HD Graphics, LPDDR3 controller |
| Memory | Ram 2,048 GB, LPDDR3 |
| LCD display | LED 8.9” IPS Touch screen |
| LCD resolution | 1920 x 1200 Full HD, Active Matrix TFT colour LCD |
| Storage | HDD 16+16GB |
| Network | Wireless IEEE 802.11 a/g/n Bluetooth 4.0 |
| Input/output ports | Micro USB-B - Microphone Micro SD card - Micro HDMI Headphones - Separated power supply input |
| Control buttons | Auto rotate off, volume control |
| Battery technology | Lithium-ion battery, 2x cell |
| Battery capacity | 6000mAh |
| Maximum charge | 10 W |
| Battery life | Up to 10 hours, up to 5.5 hours in continuous Camera Live View mode. |
| Battery plugging | Transformer 5.35V 2A Europlug connection for 110-240 VAC, USB port and cable |
| Dimensions | Thickness 9.5mm, height 15.7 cm and width 22.0 cm |
| Weight | 415 g |
| Cables included | USB camera cable, OTG cable |
| Accessories included | Instruction manual, touch pen and touchpad |
Microscope specifications:
| Model | Binocular with double layer stage, objectives 4x 10x 40x 100x |
| Head | Binocular Digital observation head, inclined 30° and rotatable 360°. |
| Observation type | Brightfield |
| Eyepieces | Widefield eyepieces WF10X/18 with field number 18mm. |
| Nosepiece | Nosepiece Quadruple revolving nosepiece, rotation on ball bearings. |
| Objectives | Achromatic objectives with mechanical tube length 160 mm, made by following objectives: -) Achromatic DIN 4X, A.N. 0.10, W.D. 18 mm All objectives are treated with an anti-fungus treatment. |
| Stage | Double layer with mechanical sliding stage, size 125x115mm, X-Y movement range 70x30 Vernier scale on the two axes, accuracy 0.1 mm. |
| Focusing system | Coaxial coarse and fine focusing mechanism (graduated, 0.002mm) with upper stop, to prevent the contact between objective and specimen. |
| Illumination | Light source type X-LED² with white LED; light intensity control using a knob on left side of the frame.
|
| Condenser | Abbe condenser N.A. 1.25 precentered |
| Dimensions | Height: 400 mm Width: 235 mm Length: 290 mm Weight: 7.0 kg |
Camera specifications:
| Digital camera resolution | 3.14 MegaPixels |
| Analog camera | NO |
| Signal output | USB 2.0 |
| Audio signal | NO |
| Sensor size | 1/2.5” |
| Sensor technology | CMOS |
| Image format | 43 |
| Image size | 2048 x 1536 |
| Pixel size | 2.2 x 2.2 micron |
| Frame rate full resolution | 5 frames/sec |
| Frame rate other resolutions | 8 FPS (1280x1024), 30FPS (640x480) |
| Sensitivity | 0,53 V/Lux-second (550 nm) |
| Signal/noise ratio | 40 dB |
| Dynamic range | 66.5 dB |
| Max exposure time | 1.5 sec |
| ADC conversion | 12 BIT |
| Colour depth | 8 BIT |
| Camera IR filter | 680 nm |
| White balance | Auto - Man |
| Gain control | Auto - Man |
| Back light control | Auto - Man |
| Exposure control | Auto - Man |
Accessories:
| Calibration slide | Yes |
Software specifications:
| Supplied software | Optika Vision Lite (full view function is also included for a wider Live Camera view) |
| Driver type | No driver (microsoft driver) |
| Capture features | Continuous auto exposure, image size, image capture, compressed video capture |
| Control parameters | Brightness, gain, exposure time, colour, colour enhancement. |
General specifications:
| Operation temperature | +0 to +60°C |
| Storage temperature | -20 to +70° |
| Relative humidity | 45% to 85% |
