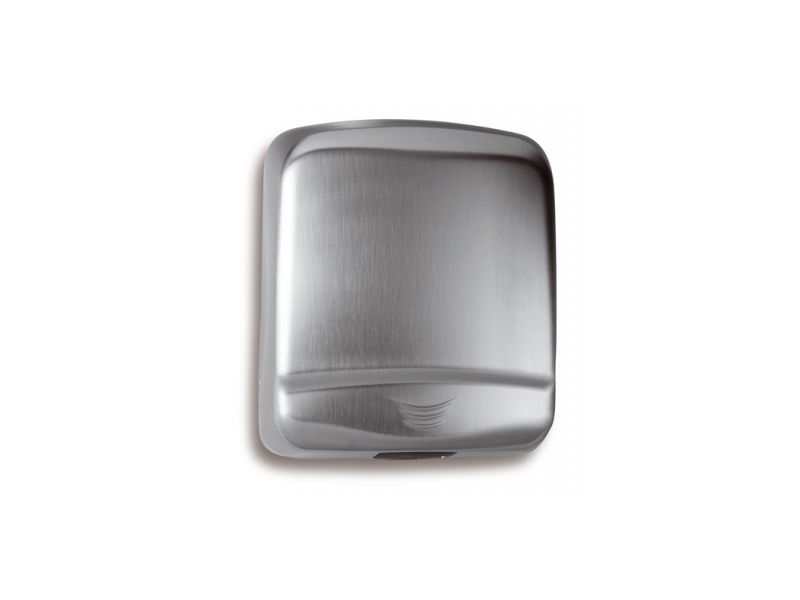

Hand dryer, sensor operated, Optima, stainless steel, satin finish
Manufacturer Information:
Name or company: Pending update
Email: Pending update
Postal address: Pending update
City: Pending update
Country: Pending update
Responsible person information:
Name or company: Pending update
Email: Pending update
Postal address: Pending update
City: Pending update
Country: Pending update
Warnings and product safety information:
• Sensor operated.
• Suitable for medium facilities.
• Compact appliance.
• Highest durability in its class.
• It normally goes along with a soap dispenser.
• Engineering thermoplastic ABS UL 94-V0 base and fan scroll, with 4 Ø 8 mm holes for wall mounting.
• Induction motor, 2.800 rpm, maintenance-free and high durability, incorporates a safety thermostat and a self-resetable thermal cut-off at 130 ºC.
• PP UL94-V0 with single inlet fan wheel.
• Waved wire NiCr 40 heating element that incorporates a self-resetable thermal cut-off at 70 ºC.
• Two distances (15/25 cm) IR electronic detection sensor.
• Zamak air outlet grill.
Place the hands under the air outlet grill. The dryer will start automatically, and go on with no interruption as long as the hands are kept in the detection range of the sensor. The appliance will stop 2 seconds after the hands are removed from the airflow.
| Voltage | 220-240 V |
| Frequency | 50/60 Hz |
| Electrical insulation | Class II |
| Dimensions | 302x 260x 150 mm |
| Weight | 4.25 kg |
| Effective airflow | 240 m³ / h 4.000 l / min |
| Nominal flow rate | 280 m³ / h / 4670 l / min |
| Air speed | 65 Km / h |
| Total power | 1640 W |
| Engine | 140 W |
| Power Resistance | 1500 W |
| Consumption | 7 A |
| r.p.m. | 2800 |
| T. air (D = 10 cm / T amb = 21 º C) | 52 ° C |
| Noise level (2 m) | 60 dB |
| Index protection | IP23 |
Between sink and door. It is recommended not to install between sink, or next to urinals, toilets and showers. On automatic models, when installed on a marble ledge, the minimum distance from the dryer to the ledge must be 400mm. It is recommended that hand dryers be distributed throughout the basin area to avoid overcrowding.
