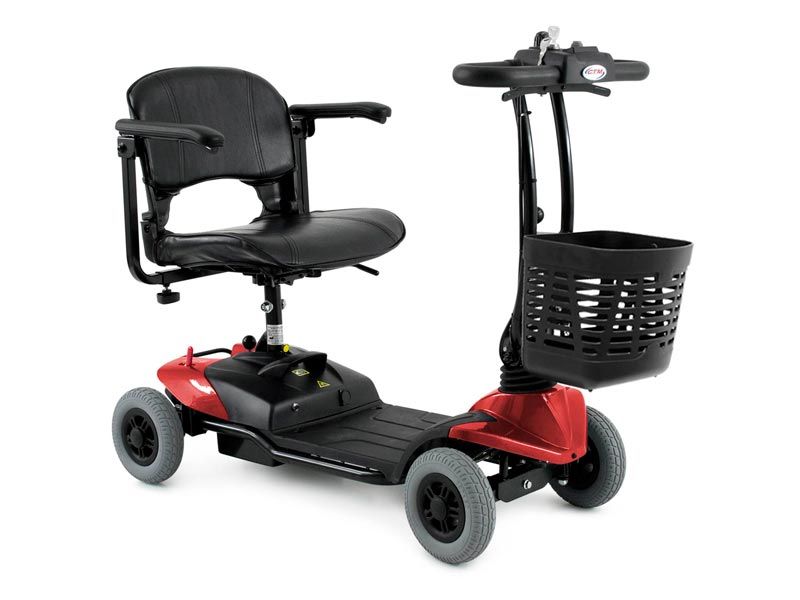

Electric scooter HS118 for mobility 4 wheeled

Electric Scooter HS118 with 4 wheels for mobility of disabled persons.

Please see the demonstration video at the end of the page.

Features:

• Compact size: It fits in most elevators and even allows you to drive inside the house (depending on its layout).
• Adjustable handlebars  in 3 positions for your comfort.
• Rotating folding seat adjustable 360 º in 6 positions by rotation lever and adjustable to 3 fixed heights with 2 cm difference between them (height chosen at the time of mounting; it can easily be changed but you need to disassemble the seat again).
• Horn.
• Battery indicator.
• Self testing warning light: It lights when there is a problem with the scooter.
• Speed control.
• Two reflectors on the back.
• Deadlock lever, which disables the traction and brakes, allowing another person to push.
• Forward and reverse gear: you can manage the control panel with one hand (either left or right). Both the right and the left lever allow to go forward and reverse.
• Removable rechargeable battery, very useful for easy transport and to take it home to recharge it. Battery charger included.
• Solid wheels.
• Ignition system with 2 sets of keys.
• Folding and adjustable armrests in width and height.
• Removable basket in front of the scooter.
• Rear anti-roll castors.
• The scooter disassembles easily into 3 main parts: Scooter, seat and armrests.
• Electromagnetic brake: The scooter stops when the throttle is released (the stopping distance depends on current speed).
• 51 cm width for increased stability.
• Reinforced chassis to reduce flexing.

Technical specifications:

• Total length: 1000 mm.
• Total width: 510 mm.
• Total height: 890 mm.
• Front and rear wheels: 195 mm diameter
• Weight with batteries: 40 kg.
• Maximum speed: 6.4 km/h.
• Maximum load: 115 kg.
• Clearance distance to the ground: 30 mm.
• Degrees of slope: 8 degrees.
• Curb climbing: 35 mm / 1.4 ".
• Turning radius: 1270 mm.
• Suspension: N/A.
• Brake: Electromechanical.
• Seat type: Padded, folding.
• Seat width: 425 mm.
• Motor: 250W, 4700 rpm.
• Battery: (2) 12V. 12Ah.
• Battery weight: 9.2 kg.
• Autonomy: 10 km.
• Battery charger: 1.8A, removable
• Electronics: Key on / off, battery level indicator, speed control switch

Precautions (read user's manual carefully before use):

• Maximum load is 115 kg
• Do not drive at full speed when making turns.
• Turn off the scooter before getting on/off or removing any component.
• Do not drive on slopes exceeding 8 degrees and be very careful when making turns on slopes.
• Do not drive the scooter unless the seat and handlebars are completely blocked and in the proper position.
• Drive at low speed to climb, descend and cross ramps or when driving on uneven terrain, like gravel or fields.
• Always follow the directions of your doctor.
• You can drive on obstacles and curbs up to 35 mm in height. Do not attempt to drive on obstacles on a slope or hill.
• Do not attempt to drive on holes longer than 10 cm.
• Never attempt driving downhill backwards.
• The front basket (accessory) has a maximum weight capacity of 3 kg.

Compatible optional accessories:

• 647-AMP9038-2 Pack of 2 replacement batteries for scooter
