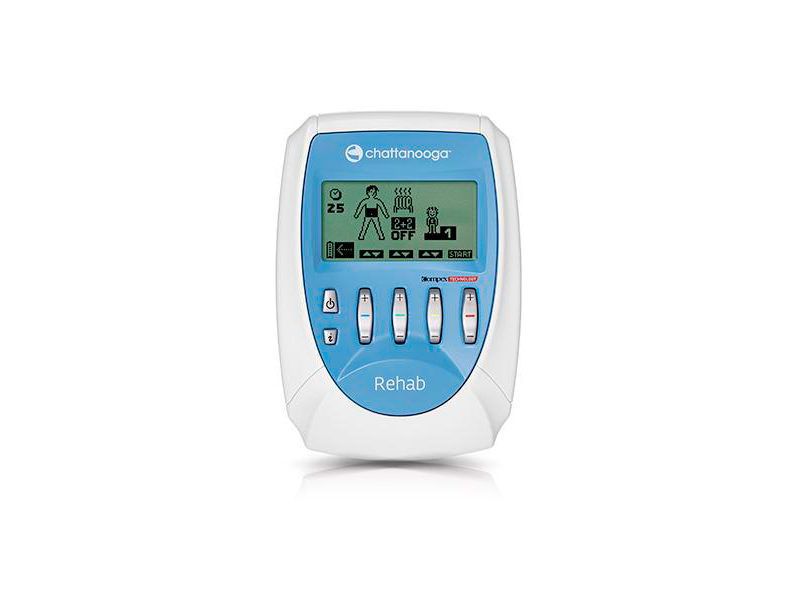

Chattanooga stimulator Rehab 4 channels standard programmes configuration

Chattanooga Rehab 4 channels stimulator with standard programmes configuration. Developed for physiotherapists and rehab centers that demand a standard electro stimulation. It allows to treat pain and vascular diseases and stimulates muscles.

Features and functions:

• 4 channels.
  • It allows to treat pain and vascular diseases and stimulates muscles.

• 4 functions in the 4 channels: Mi-Scan (analysis), Mi-TENS, Mi-Range (optimal intensity range), Mi-Action (the session is activated with a voluntary contraction detected by the device in order to start stimulation).
• Languages available: Spanish, English, French, Italian, Dutch, German, Portuguese, Turkish, Greek, Swedish, Danish, Norwegian, Finnish, Russian, Polish, Czech.
• I-key: it allows to adjust the intensity of the 4 channels at the same time, to access your 5 favourite programmes directly or to check running statistics (number of contractions, intensity level...) during the sessions.
• Pause mode: to pause stimulation in order to relocate electrodes.
• Settings: it allows to create and customize the programmes in order to adapt them to the patient's needs.
• 2 + 2: select a programme for channels 1 and 2 and, then, select another programme in the 2+2 list for channels 3 and 4. This allows to treat two body parts or two patients simultaneously, or to combine NMES and TENS in a single treatment.
• Skip: manage the time of the session and go directly to the following phase (recovery) when necessary.
• Motor point pen: this tool helps you ensure the optimum location of electrodes.

4 standard programmes:

 Technical data:

• Class IIa.
• IP22.
• Applied parts: type BF.
• It complies with safety standards IEC 60601-1, IEC 60601-1-2, IEC 60601-2-10.
• Battery: nickel-metal hydride (NiMH) rechargeable (4.8V, 2000mA/h).
• Pulse shape: constant rectangular; current with compensation pulse.
• Maximum pulse intensity: 120 mA.
• Pulse intensity increments: manual adjustment of stimulation intensity from 0 to 999 (energy) in 0.25mA increments.
• Pulse width: 30 to 400μs.
• Maximum electric charge per pulse: 96 microcoulombs (2 x 48μC, compensated).
• Standard pulse duration: 3μs (20% - 80% of maximum current).
• Pulse rate: 12 to 150Hz.
• Dimensions: 13.8 x 9.5 x 3.3 cm.
• Weight: 300g, battery included.

Accessories included:

• Charger.
• Battery.
• 4 cables fitted with pin connector.
• Snap adaptor kit.
• Protective cover.
• 2 pouches of small electrodes (5 x 5 cm, 1 snap connection).
• 2 pouches of large electrodes (5 x 10 cm, 2 snap connections).
• Gel bottle.
• Motor point pen.
• Transport bag.
• Waist clip.
