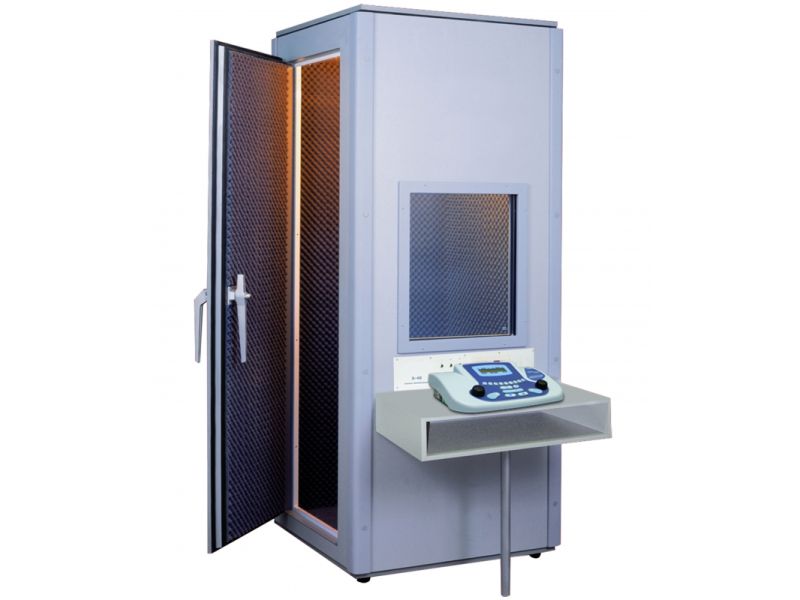

SIBELMED soundproof audiometry booth

Soundproof booth for carrying out audiometry tests. Designed with the state-of-the-art materials of acoustic insulation. Adjustable to all the audiometer models. Its size enables it to be used in hospitals.
€0 00
Excl. Tax: €0.00
Shipping costs Ship to:

Description

Please contact our sales team on 0044 (0)207 048 4065 or by email to [email protected] regarding delivery costs as extra secure delivery costs for large items may be different to that of the web as well as delivery time and installation information.

Soundproof audiometry booth-

This model comes flatpacked, however, the assembly is very simple and involved connecting the individual panels with the screws that are provided. The door can be put either side (left and right hand side) depending on the customers needs



Features:

  • These soundproof booths have been designed using the newest sound-insulation materials. This feature allows reducing the weight achieving a high degree of insulation, functionality and design.
  • The external surface consists of washable panels and the interior is pleasantly lighted and very comfortable. The design allows quick and easy installation by non-specialist staff.

Recommended uses:

Reference Model Use
104-01634 S40 A Prevention
104-01636 S40 B Specialists, Optics
104-01637 S40 C Specialists, Optics, Hospitals
104-01640 S40 E Specialists, Optics, Hospitals (special width)


Technical data:

  • Attenuation: 33.5 dB “250-8000Hz” (certified) / 32 dB “100-10000 Hz” (certified)
  • Weight: 265 kg. approx.
  • Ventilation: unforced ventilation system.
  • Window: double glazing.
  • Standards: CEI 601.1, ANSI S3.1, ISO 8253-1.
  • Power supply: 220 V 50-60 Hz. (other options on-demand)
  • Power consumption: 50W
  • Adaptable to any audiometer
  • BOOTH CERTIFIED BY LGAI (No. 95.007.927)

Attenuattion chart (dB):

Frequency (Hz) 100 125 160 200 250 315 400
Dp (dB) 9 22 28 34 21.5 32.5 28
Frequency (Hz) 500 630 800 1000 1250 1600 2000
Dp (dB) 28.5 227.5 32.5 32 34.5 37 38.5
Frequency (Hz) 2500 3150 4000 5000 6300 8000 10000
Dp (dB) 40.5 40 41.5 44.5 45.8 44.9 46

 Optional accessories:

  •  Wheels
