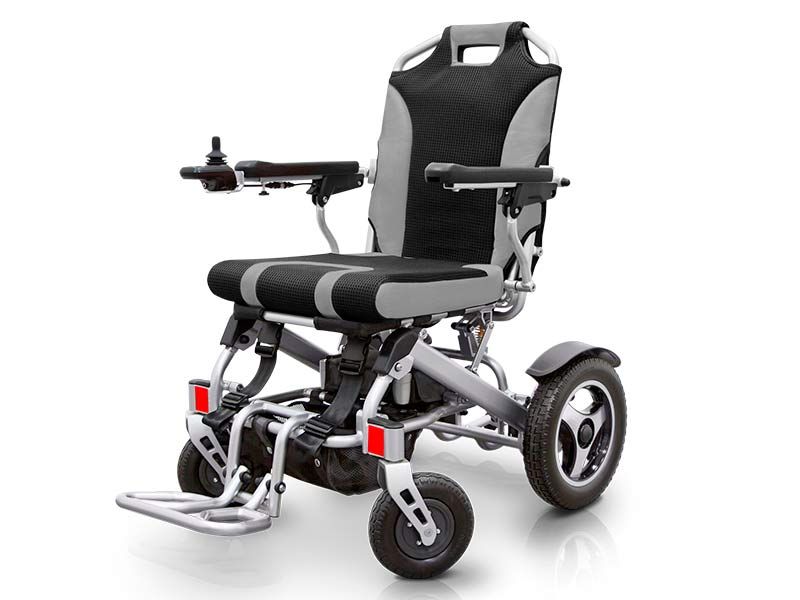

Folding Electric Wheelchair ELITE ULTRALIGHT Reinforced Frame

The ELITE ULTRALIGHT is an electric wheelchair designed for those who need a truly sturdy model without sacrificing lightness and ease of transport. Its reinforced aluminum chassis provides great robustness, supporting up to 150 kg while weighing only 25 kg. Its Brushless motor and high-capacity battery offer a 25 km range. Thanks to its compact folding and complete equipment, it is ideal for both daily use and frequent travel.

Reinforced chassis with a capacity of up to 150 kg

Its reinforced aluminum structure combines high resistance with a light weight, allowing it to support up to 150 kg without compromising maneuverability, stability, or transport ease.

Up to 25 km range

The removable lithium battery provides a range of up to 25 km, offering greater freedom to tackle long trips with fewer recharges needed.

Brushless motor: more efficiency and driving smoothness

The wheelchair is equipped with a Brushless motor that provides a technical differential noticeable in every movement: smoother, more stable rides, and higher efficiency that preserves battery life.

Lightweight, foldable, and easy to transport

At only 25 kg with a compact folding system, this electric wheelchair can be handled with complete ease. It fits comfortably in a car trunk and can be stored taking up minimal space.

Comfort and superior equipment

Dual-spring rear suspension, Smart Mini joystick adaptable for right and left-handed users, high-traction wheels, fold-away armrests, anti-tip wheels, dual safety belt system, rear pocket, and storage basket to offer a comfortable and safe user experience.

Features:

• Reinforced aluminum chassis for greater strength and lightness, weighing only 22.5 kg without batteries.
• High-traction wheels with distinct tread and rims on the rear wheels.
• Anti-tip wheels.
• Rear suspension that mitigates small unevenness and provides a comfortable experience.
• Includes charger and removable lithium battery.
• Easy and compact folding that makes it fit perfectly in a standard car trunk.
• SMART joystick adaptable for right and left-handed users with horn, speed regulator, and battery charge indicator functions.
• Foldable armrests.
• Folding footrest.
• Safety belt to place as convenient.
• Safety belts integrated in the leg area.
• Storage pocket on the backrest.
• Storage basket at the bottom.

Technical data:

• Chassis: Reinforced aluminum
• Joystick: SMART MINI progressive control
• Right/left-handed positionable joystick: Yes
• Battery: Lithium (25.9V 15.6Ah) - Removable
• Charger: 3 Ah
• Charging time: 5 hours
• Motor: Brushless - New Technology (Lighter, quieter, and with higher efficiency that maximizes battery autonomy)
• Autonomy: 25 km
• Maximum speed: 8 km/h
• Traction: Rear
• Braking system: Electromagnetic
• Operating modes: Electric and Manual
• Maximum supported weight: 150 kg
• Weight (with battery): 25 kg
• Maximum slope: 12º
• Rear suspension: (2 springs)
• Safety belts: 2 (1 + 1 integrated for legs)
• Foldable armrest: Yes
• Anti-tip wheels: Yes
• Bottom basket: Yes
• Rear pocket: Yes
• Front wheels: 20 cm (solid)
• Rear wheels: 30 cm, aluminum rim (solid)
• Dimensions (assembled): 98 x 62 x 104 cm
• Dimensions (folded): 80 x 62 x 34 cm
• Seat width (between armrests): 46 cm
• Seat depth: 45 cm
• Backrest height: 52 cm
