7' Portable spirometer with oximetry and Bluetooth

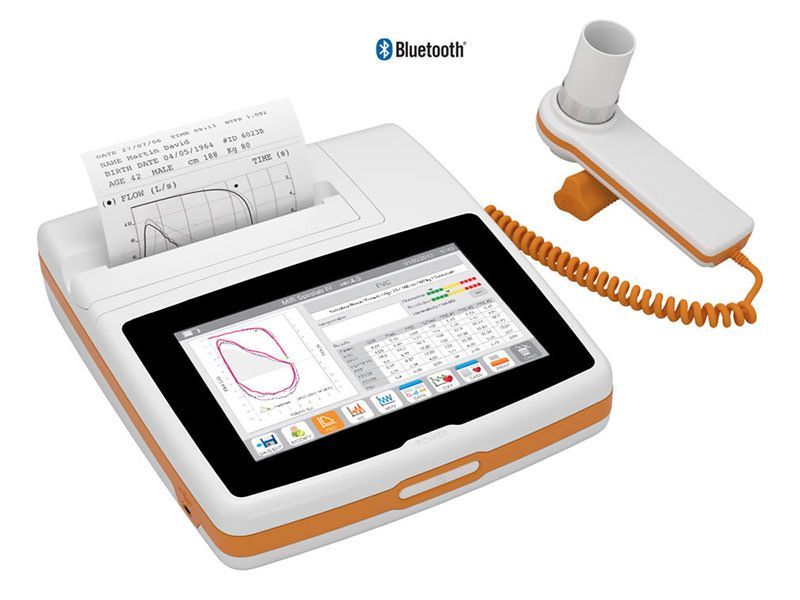

New Spirolab portable desktop spirometer with oximetry, 7" touch screen and Bluetooth

Models:

• Ref. 127-680911081E1 Reusable turbine
  • For your long-term use.
  • High accuracy.
  • Reliable over time.
  • Easy to clean and sanitize.
• Ref. 127-680911081E2 60 FlowMir disposable turbines
  • For each patient.
  • Always exact in measurement.
  • Simple to replace.
  • Economic.
  • Designed for MIR spirometers.
  • FlowMIR calibrated at the factory.
  • No maintenance – No filter needed – No problem.
  • 100% guaranteed hygiene.

Characteristics:

• Portable desktop spirometer
• 7 inch touch screen
• Wireless real-time communication to PC via Bluetooth
• Database of up to 10,000 spirometric tests or 900 hours of recording of recorded oximetry
• Fast and silent internal printer with configurable print formats
• Long-lasting rechargeable battery
• Pediatric incentive system shown directly on the screen, helps to obtain the patient's collaboration during the Spirometry test
• Spirometry tests: FVC, VC, IVC, MVV, PRE/POST Bronchodilator Comparison with a wide range of selectable parameters
• Includes elegant and robust transport case
• Winspiro Pro PC software with free updates
  • Easy to use thanks to intuitive icons.
  • Spirometry and oximetry measurements and graphs in real time during the test.
  • Bronchial challenge test with FEV1 dose-response curve.
  • Integration with EMR (Electronic Medical Record).
  • Pediatric incentive with fun animations.
  • Lung age estimation.
  • Data and graphs exportable also e-mail.

Oximetry Parameters:

• %SpO2 and Pulse Rate (Min, Max, Average)
• Test duration
• SpO2 Total Events
• T90% (SpO2 time ≤89%)
• T89% (SpO2 time ≤88%)
• T40 (Duration of Bradycardia with pulse <40 BPM)
• T120 (Tachycardia duration with pulse >120 BPM)

Spirometry Parameters:

• FVC
• FEV1
• FEV1/FVC
• FEV1/VC
• PEF
• FEF25
• FEF50
• FEF75
• FEF25-75
• FEF75-78
• lung age
• Extrap. Volume
• FET
• Time to PEF
• FEV0.5
• FEV0.5/FVC
• FEV0.75
• FEV0.75/FVC
• FEV2
• FEV2/FVC
• FEV3
• FEV3/FVC
• FEV6
• FEV1/ FEV6
• FEV1/PEF
• FEV1/FEV0.5
• FIVC
• IVF1
• IVF1/FIVC
• PIF
• FIF25
• FIF50
• FIF75
• FEF50/FIF50
• VC
• CVI
• CI
• VRE
• IRV
• R.f.
• GO
• VT
• you
• tea
• VT/tI
• tE/tTOT
• MVV (measured)
• MVV (calculated)

Standard accessories:

• spirometer
• 1 reusable oximetry sensor
• WinspiroPRO PC software CD
• USB Cable
• wired flowmeter
• Power supply / Battery charger
• 1 Roll of thermosensitive paper
• 2 spare fuses (2A, 4A)
• 1 nose clip
• CD with user manual
• transport case

Optional accessories and spare parts:

• 127-0460004 FlowMIR disposable turbine for spirometers, 60 units
• 127-0460001 Reusable turbine with mesh
• 127-0460011 Antibacterial/virus filter (50 units), disposable, individually packed
• 127-0460002 Calibration syringe 3L
• 127-9983730 Disposable paper mouthpiece, 500 pcs for adults
• 127-460012 Reusable plastic nozzle (blue) Box 100 units.
• 127-9983722 Disposable paper mouthpiece, 100 units for children
• 127-0460013 Reusable plastic pediatric mouthpiece (white, conical). Bag 15 units
• 127-1011200 Thermal paper roll for printer 112 mm, box 10 units
• NOSEFLOW nose clip (nose clip)
• 127-910700 PeraSafe sterilizing solution (162g) (for reusable turbine)
• 127-683919024 Adult reusable oximetry sensor, for New Spirolab
• 127-683919029 Pediatric reusable oximetry sensor, for New Spirolab
