Portable finger pulse oximeter Nonin Onyx Vantage 9590 high precision

Portable finger pulse oximeter Nonin Onyx Vantage 9590 high precision. Available in four colours (black, red, blue and purple). Includes a cord, a CD with instructions and two batteries AAA.

Characteristics:

Allows to measure SpO² and pulse rate in a fast and accurate manner, even in motion and in low perfusion conditions.

• The accuracy and performance of the device have been ratified by published and peer-reviewed clinical studies.
• It can be used in fingers (including thumb) and on the big toe.
• Protected against falls and water spills.
• Efficient:
  • Until 6,000 occasional measurements.
  • 36 hours of continous work with two batteries AAA.
• Made in USA, lead and latex free.
• Can be used both with children and adults (finger thickness: from 0.8 to 2.54 cm).
• Weights less than 57 grammes, so that you can carry it everywhere.
• Thanks to its bright LED screen, SpO² and pulse rate can be read from any angle, independently from the illumination, both in the daytime and in the nighttime.
• It features a LED indicator that determines the pulse quality with a code of three colours (green, yelllow or red).
• Without on/off button:
  • To perform a measurement, just introduce your finger (automatic switch).
• Includes:
  • Cord.
  • CD with instructions.
  • Two batteries AAA.

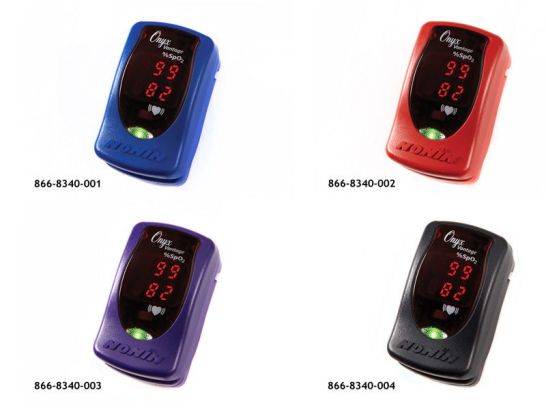

• 4 colours available:
  • Ref. 866-8340-001:  finger pulse oximeter Nonin Onyx Vantage 9590 high precision blue.
  • Ref. 866-8340-002:  finger pulse oximeter Nonin Onyx Vantage 9590 high precision red.
  • Ref. 866-8340-003:  finger pulse oximeter Nonin Onyx Vantage 9590 high precision purple.
  • Ref. 866-8340-004:  finger pulse oximeter Nonin Onyx Vantage 9590 high precision black.

Technical specifications:

• Dimensions:
  • 5.59 cm length x 3.3 cm width x 3.23 cm height.
• Oxygen saturation range:
  • 0 -100% SpO².
• Pulse rate range:
  • 18-321 bpm.
• Accuracy range of oxygen saturation:
  • 70-100% SpO² ±2 digits.
• Accuracy range of oxygen saturation in low perfusion conditions:
  • 70-100% SpO² ±2 digits.
• Accuracy range of oxygen saturation in motion:
  • 70-100% SpO² ±3 digits.
• Accuracy range of pulse rate:
  • 20 -250 lpm ± 3 digits.
• Accuracy range of pulse rate in low perfusion conditions:
  • 40-240 lpm ± 3 digits.
• Accuracy range of pulse rate in motion:
  • 40-240 lpm ± 3 digits.
• Measuring and output power wavelengths:
  • Red:
    • 660 nanometers at 0.8 mW maximum average.
  • Infrared:
    • 910 nanometers at 1.2 mW maximum average.
• Temperature:
  • Working:
    • From -5° to 40 °C.
  • During storage or transport:
    • From -40° to 70 °C.
• Humidity:
  • Working:
    • From 10 to 90% non-condensing.
  • During storage or transport:
    • From 10 to 95% non-condensing.
• Height:
  • Working:
    • Until 12,192 m.
  • Hyperbaric pressure:
    • Until 4 atmospheres.
• Battery life:
  • Working:
    • Approximately, 6,000 measurements/ 36 hours of continuous work with alkaline batteries AAA.
  • Storage:
    • 12 months.

Classifications under IEC 60601-1; CAN/CSA C22.2 No. 601.1; UL 60601-1:

• Protection degree:
  • Applied parts type BF.
• Working mode:
  • Continuous.
• Protection degree against penetration:
  • IP32.
