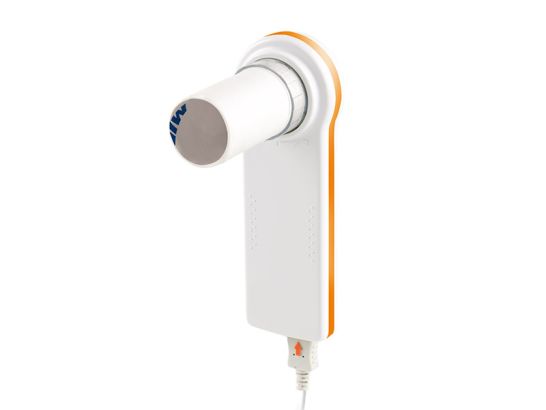

MINISPIR SPIRO PC-based USB spirometer, including winspiroPRO PC software, plus carrying case.
Diagnosing respiratory diseases such as Asthma and COPD has never been so simple and affordable.
Minispir Spiro for a complete analysis of respiratory functionality.
Characteristics:
- It connects directly with the PC via USB. Flow / Volume and Volume / Time curves in real time with PRE-POST BD comparison.
- Advanced interpretation of the spirometric test.
- Pediatric incentive animations
- Estimation of lung age.
- Bronchial provocation including the protocol for Mannitol with FEV1 response curve.
- Temperature sensor for BTPS
WinspiroPro software included:
- WinspiroPro is a unique PC software of its kind, which is included in the supply of every MIR spirometer and pulse oximeter.
- Provides a detailed analysis of oximetry linked to physical activity and body position.
- 6 minute printed report in three phases: baseline, running, recovery
- All patient records are displayed in a simple way, a single screen with the patient file for the dynamic management of all data and graphics.
- In a single window of the screen it is possible to view the summary with the data and graphs of all the tests carried out, including the pulse oximetry parameters. (6MWT, sleep, stress test ....)
- Test results can be easily printed. The data monitored by Spirodoc is automatically imported, creates the patient files and previews the curve.
- The incentive for spirometry, patented by MIR, allows the use of any freely chosen incentive image, to guarantee the maximum collaboration of the patient (children or the elderly).
- WinspiroPro can be easily connected to databases, hospital charts, doctor's office management systems, and occupational medicine software.
- Ideal for clinical trials of new drugs and for telemedicine applications, it provides graphs with the evolution of the sectioned parameters.
- The memorized tests can be superimposed for comparison. For each patient, it is possible to retrieve hundreds of curves.
- WinspiroPro can easily be connected to a hospital database, an electronic medical record or an occupational health system (It also incorporates the HL7 Interface)
Supports NHANES III standards.
FlowMir single-use turbine
- For each patient
- Always accurate.
- Easy to replace.
- Economical
- Created for use with MIR spirometers.
- FlowMIR is calibrated by the producer.
- Available in boxes of 50 pieces.
- No Maintenance - No Filter Needed - No Problem.
- Hygiene guaranteed 100% in each bag containing the turbine.
Reusable turbine
- For long spirometric cycles
- Maximum precision in measurement
- Long-term reliable
- Easy to disinfect
Technical characteristics:
- Temperature sensor: semiconductor (0-45 ° C)
- Flow sensor: bi-directional digital turbine
- Flow range: ± 16 L / s
- Volume accuracy: ± 3% or 50 mL
- Flow accuracy: ± 5% or 200 mL / s
- Dynamic resistance at 12 L / s: <0.5 cmH 2 O / L / s
- Communication port: USB
- Measurements: 142x49.7x26 mm
- Weight: 65 grams
- Measured parameters: FVC, FEV1, FEV1%, FEV3, FEV3%, FEV6, FEV1 / FEV6%, PEF, FEF25%, FEF50%, FEF75%, FEF25-75%, FET, Vext, Lung age, FIVC, FIV1, FIV1 %, PIF, VC, IVC, IC, ERV, FEV1 / VC%, VT, VE, Rf, ti, te, ti / t-tot, VT / ti, MVV.
Standard accessories:
Optional gadgets:
